Ultra Light Outdoor LED Platform
☑ 25% less power consumption, lower temperature on LED surface
☑ 2~3 years Long warranty
☑ 7-10 years life time
☑ Outdoor 3500nits
☑ 16:9 optimal display ratio display mode
☑ Anti-collision with GOB
☑ 10000:1 contrast ratio
☑ 7680HZ high refresh rate
Description
Special Features:
1.With our enhanced GOB encapsulation process and refined edge finishing on every module, we can virtually eliminate visible seams. Standard GOB modules typically show around 40 μm (0.04 mm) of alignment deviation, while ours reduces this to just 10 μm (0.01 mm). We continue to optimize our GOB technology, addressing critical requirements for outdoor fine-pitch displays—including improved heat resistance and anti-graffiti protection.

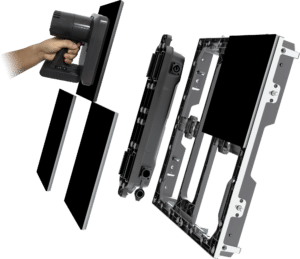

2.Full front & back maintenance
☑ Modules Full front & back maintenance ☑ Power supply Full front & back Maintenance☑ Full front & back installation
3.IP65 for front & back
Highly resistant to extreme temperatures, water, dust, and corrosion.
-Waterproof -Dustproof -Corrosion resistance -UV resistance

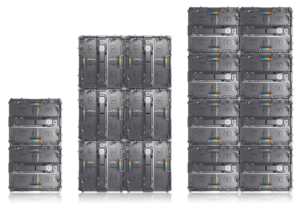

4.16:9 Display Ratio By Horizontal or Vertical Can be replaced the on street LCD screen or Outdoor TV without changing the out shelter.
| Street LCD | Cabinet Direction
W*H(mm) |
Cabinet QTY
W*H(mm) |
LED Screen
W*H(mm) |
Screen Pixel P1.2W*H | Screen Pixel P1.5W*H | Screen Pixel P1.8W*H |
| 43” | 540×480 | 1×2 | 540×960 | 432×768 | 360×640 | 288×592 |
| 75″ | 480×540 | 2×3 | 960×1620 | 768×1296 | 640×1080 | 523×864 |
| 86″ | 540×480 | 2×4 | 1080×1920 | 864×1536 | 720×1280 | 576×1024 |
| 136″ | 540×480 | 3×6 | 1620×2880 | 1296×2304 | 1080×1920 | 864×1536 |
| 165″ | 540×480 | 4×8 | 2160×3840 | 1728×3072 | 1440×2560 | 1152×2048 |
| Resolution | Standard Resolution
W*H(mm) |
Cabinet Resolution
W*H(mm) |
Cabinet QTY
W*H(mm) |
LED Screen Resolution
WxH(mm) |
| 2K(P1.5) | 1920×1080 | 320×360 | 6×3 | 2880×1620 |
| 4K(P1.2) | 3840×2160 | 384×432 | 10×5 | 4800×2700 |
